T1N 2001-2006 Sprinter Van Draw-Tite Class III Max Frame Receiver Hitch

$279.95

 Tax Included Pricing

SKU: KYY-75210 Category: Tags: ,

Description

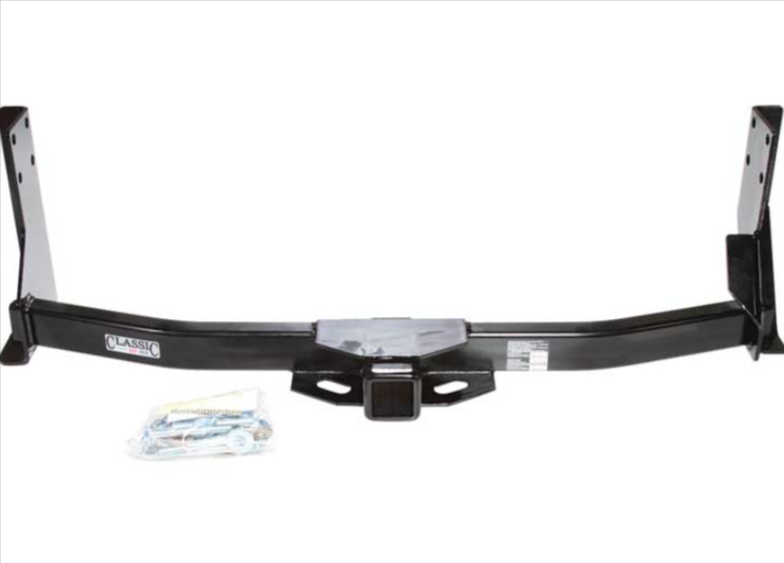

2001-2006 Dodge Sprinter – Draw-Tite Max-Frame Trailer Hitch Receiver – Custom Fit – Class III – 2″

Fully welded T1N Dodge Sprinter trailer hitch is strong and durable. Draw-Tite’s Tested Tough guarantee ensures that this hitch exceeds industry standards. The combination of an e-coat base and a powder coat finish provides excellent rust protection.

No drilling required

No drilling required for installation , Does not fit models with metal step bumper

  • Class III 2 Inch Hitch, Visible Cross Tube, 7500 lbs WD GTW, Custom Fit Hitch for T1N 2001-2006 Sprinter Van. 750 lbs WD TW

Features:

  • Custom-fit trailer hitch lets you tow a trailer or carry a bike rack or cargo carrier with your 2001-2006 Dodge Sprinter
  • Computer-aided, fully welded steel construction ensures strength and durability
  • Tested Tough – safety and reliability criteria exceed industry standards
  • Easy, bolt-on installation – no welding required
    • Complete hardware kit and 2001-2006 T1N Sprinter installation instructions included
  • Lifetime technical support from the experts at t1Nparts.com
  • Black powder coat finish covers e-coat base for superior rust protection
  • Sturdy, square-tube design
  • Ball mount, pin and clip sold separately

Interested in the Curt version of this Hitch? Click Here

Specs:

  • Receiver opening: 2″ x 2″
  • Rating: Class III
    • Maximum gross trailer weight: 5,000 lbs
      • Maximum GTW when used with weight distribution: 7,500 lbs
    • Maximum tongue weight: 500 lbs
      • Maximum TW when used with weight distribution: 750 lbs
  • Limited lifetime warranty

Draw-Tite Tested Tough

Draw-Tite Tested Tough

Draw-Tite’s Tested Tough program provides testing standards far superior to those outlined by the Society of Automotive Engineers (SAE), the go-to source for engineering professionals.

Each Draw-Tite trailer hitch receiver undergoes extensive fatigue testing and static testing with the ball mount that is either supplied or recommended for use with that particular hitch, thus ensuring results that are applicable to real life use. Fatigue testing is also conducted on hitches rated for use with weight-distribution systems.

In addition, Draw-Tite performs static testing on a simulated automobile, as opposed to the rigid fixture used for SAE testing, resulting in a more true-to-life scenario.

T1NParts.com Technical Support

At T1NParts.com we’re committed to the products we sell, and to our customers. Our experienced and knowledgeable staff are available via both phone and email to address your questions and concerns for the lifetime of your hitch. The technicians at T1NParts.com perform hitch installations on a daily basis, making them a valuable resource for do-it-yourselfers. The one-on-one, personal service you’ll receive comes straight from an expert in the towing and automotive field. We’ve installed it, we’ve wired it and we’ve towed with it, so whatever your question, we can answer it.

75210 Draw-Tite Class 3 Trailer Hitch Receiver – Max-Frame

87647 Hidden Hitch Class 3 Trailer Hitch Receiver

T1N 2001-2006 Sprinter Van Draw-Tite Class III Max Frame Receiver Hitch Installation Instructions

California residents: click here

Fits

140 inch Wheelbase with Dual Rear Wheels

140 inch Wheelbase with Single Rear Wheels

158 inch Wheelbase with Dual Rear Wheels

158 inch Wheelbase with Single Rear Wheels

Additional information

Weight 60 lbs
Dimensions 48 × 20 × 10 in
Sprinter Van Type

2500, 3500

Sprinter Van Wheelbase

144" Wheelbase, 170" Wheelbase

Bumper

With Step Bumper, Standard Bumper
