Description

Suspension Air Bag Kit (2 Bag) for a 2500 T1N 2001-2006 Sprinter Van

Air Suspension KIT for your T1N Sprinter Van with heavy Duty Compressor

To be used with a Single rear wheel Mercedes-Benz Sprinter 2006-2022 RWD and FWD. The air suspension kit is ready to go after easy fit in less than 2 hours moreover you don’t have to drill or do any extra job to fit it as the kit comes with brackets, mounting systems and even screws. Paper guide instruction is also included. Loading capacity max 4000kg.

• Make/Model: 2001-2006 T1N 2500 Sprinter Van
• Year: 2001-2006
• Drivetrain: RWD Rear wheel drive
• Rear Wheel Layout: Single rear wheel
• Body type: Panel van, tipper, motorhome, camper, box, chassis, minibus, luton, crew van, Recovery
• Chassis type: All standard type of chassis excluding alco type torsion bars chassis.

The air suspension kit comes with heavy duty air compressor to inflate the kit and also can be use to inflate your tyres in emergency situations as well as it is portable and powered from cigarette lighter socket.

• Made from galvanized heavy duty S355 steel
• Loading 4000 kg
• Min 10 PSI when unloaded and 75 PSI when loaded
• Height: Min 100mm, Max 220mm.
• High quality heavy duty rubber air bags
• 2 years written warranty
• The kit includes:

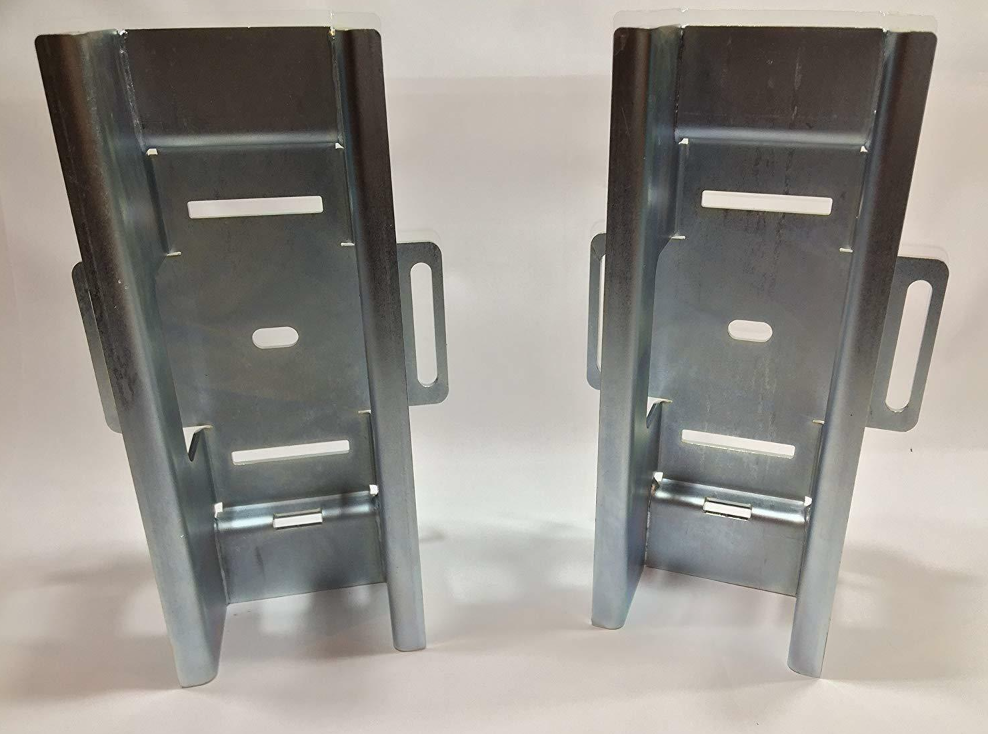

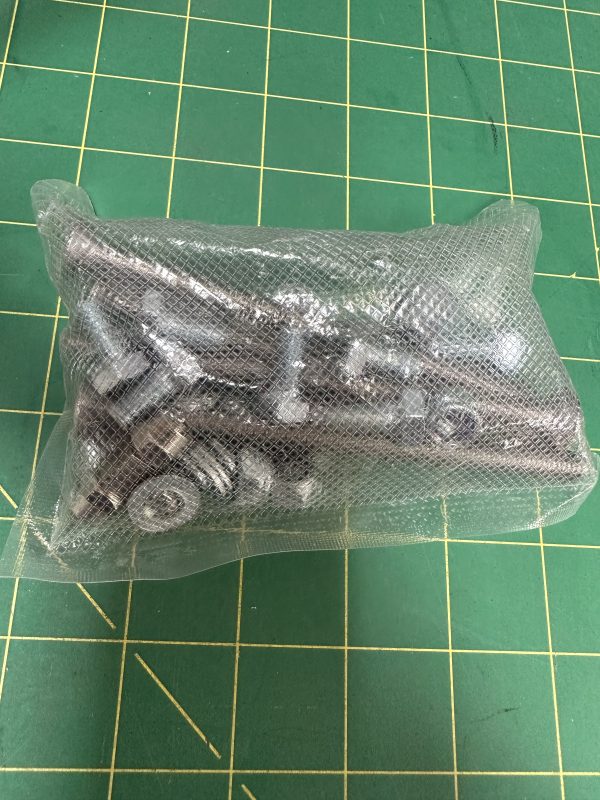

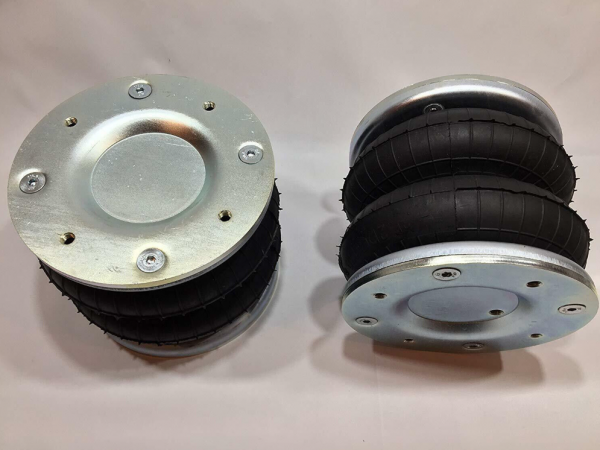

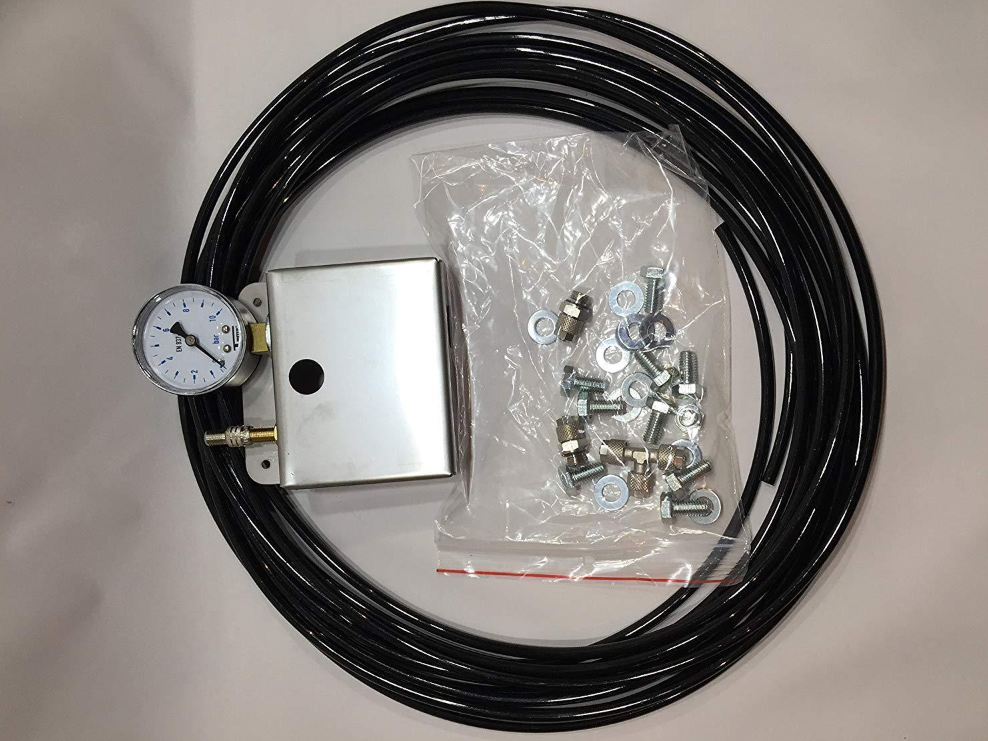

  2 air bags, mounting brackets, manometer, Heavy Duty portable 12V air compressor, screws, fitting step by step guide, pneumatic cable.

  Please note that this item only ships free to the Contiguous United States. It does not include Canada, Hawaii, Alaska, or the other USA territories.
