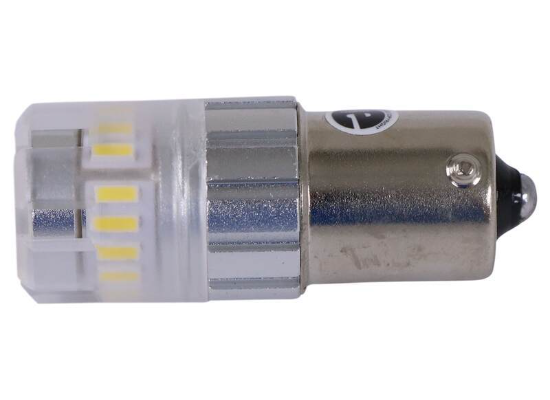

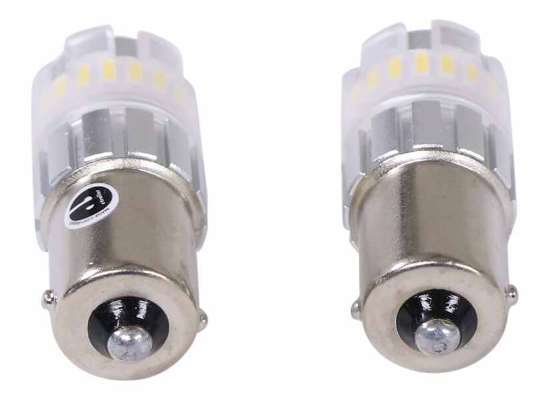

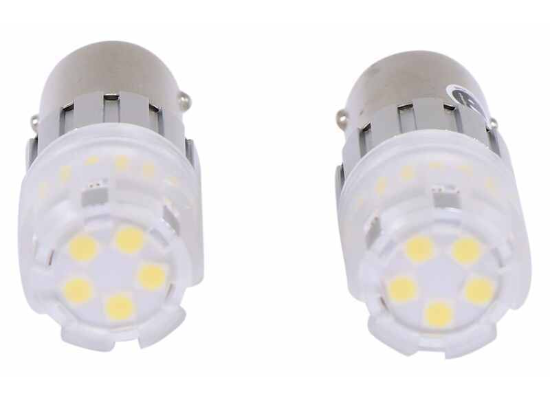

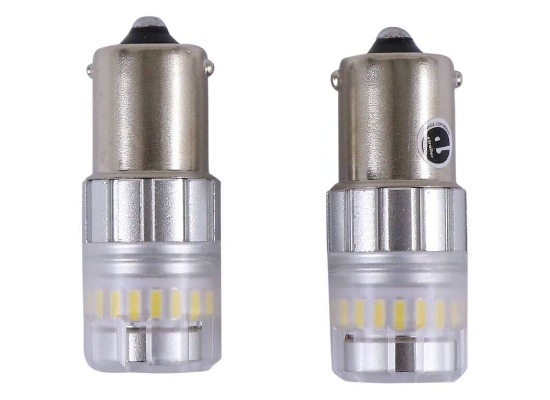

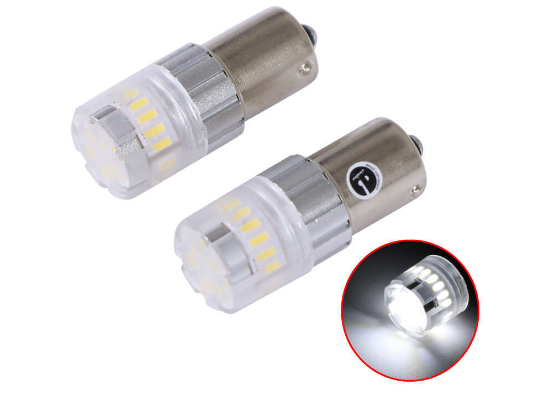

T1N 2001-2006 1156 LED Bulbs – 600 Lumens – Cool White


SKU: ETCARC28FR Categories: , Tags: , ,


2001- 2006 Dodge Sprinter – 1156 LED Bulbs – 360 Degree – Single Contact Bayonet – 600 Lumens – White – Qty 2

FREE SHIPPING | Tax Included Pricing

Item is in stock & Ships by next business day

  • Brake Light
  • Dome Light
  • Replacement Bulbs
  • White
  • ARC
Check out bulbs with 600 Lumens Click Here!

Easily upgrade your factory bulbs on your T1N 2001-2006 Sprinter Vans applications with these white 1156 LED bulbs. Compact bulb design prevents fitment or clearance issues. 15-mm Diameter, BA15s base.

T1N 2001-2006 1156 LED Bulbs – 600 Lumens – Cool White Conversions installation instructions



  • LED bulbs provide bright white light for automotive, marine, and RV applications
    • Great for back-up, interior, or courtesy lights

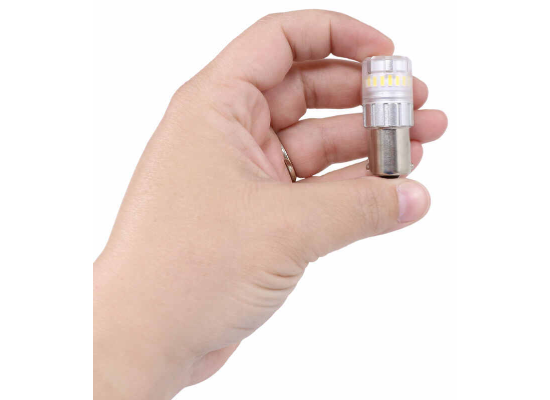

  • Compact bulb design with automotive-grade LED chips
    • Sized similar to OEM bulbs to ensure there are no fitment issues

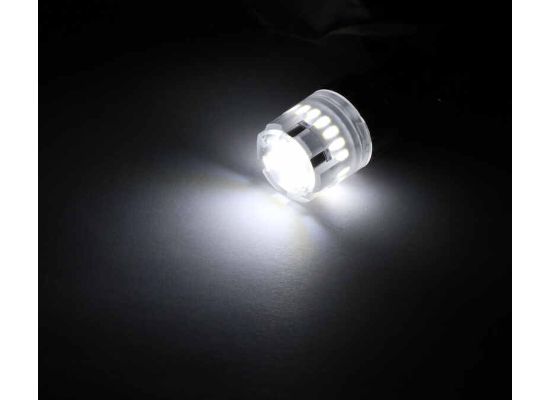

  • 360-Degree design emits light around the bulb
  • Single-contact bayonet base installs into compatible 15-mm socket with a push-screw motion
  • Durable aluminum construction prevents overheating
  • Reverse polarity protected



  • Quantity: 2 bulbs
  • Bulb type: 1156
  • Light output:
    • Raw lumens: 645 lumens
    • Effective lumens: 600 lumens
    • Stable lumens (after 30 min. of usage): 487 lumens
  • Diodes: 23
  • Color temperature: 5,500 K
  • Wattage: 6.5 watts per bulb
  • Power draw at 12V: 0.65 amps
  • Voltage: 9V – 16V DC
  • IP rating: 67
  • 2-Year limited warranty

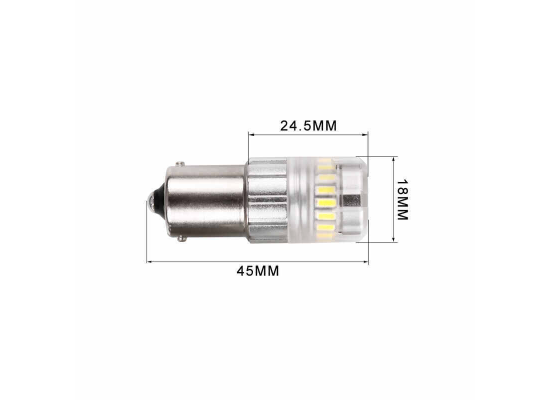

ARC 3116W Eco 1156 LED Bulb Dimensions

Raw Lumens vs. Effective Lumens vs Stable Lumens

Lumens are used to measure the amount of usable light that is put out by a light source. Raw lumens represent the number of lumens that the manufacturer claims the LEDs are capable of producing. It does not include the light’s drive method or the amount of light lost from the lens or reflector. Effective lumens take these factors into account and represent the number of lumens that are actually produced by the complete light assembly, not just the amount of light that the diodes are capable of producing. Stable lumens builds off the idea of effective lumens by measuring the amount of light produced after 30 minutes of usage, or once the diodes have reached their average operating temperature. These bulbs have a 645 raw lumen capacity per bulb and produce 600 effective lumens per bulb. The stable lumen capacity per bulb is 487 lumens.


3116W ARC 1156 LED Bulbs – ECO Series – BA15s Base – 23 Diodes – White – 5500K – 2 Pack

Replaces ARC 3216W

Additional information

Weight 1 lbs
Dimensions 8 × 6 × 1 in
