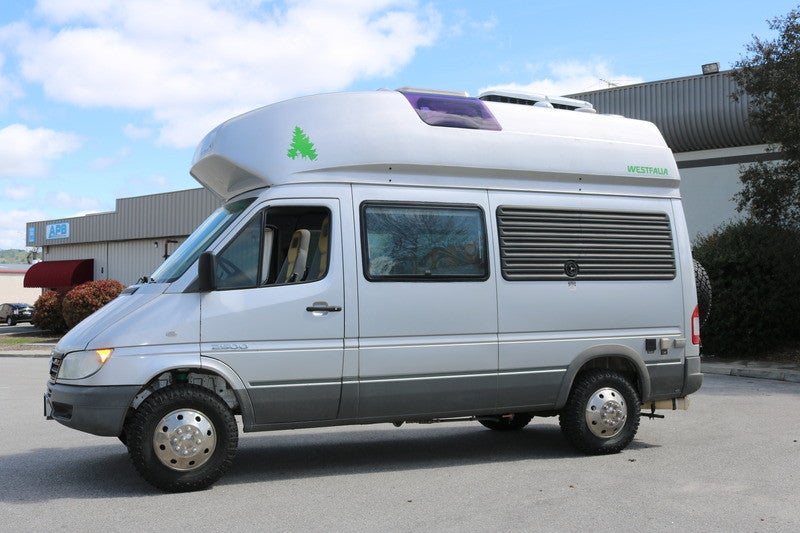

T1N 2001-2006 2500 | 3500 Sprinter Van Scout 2″ Lift Kit

$1,971.00

SKU: VC4-T1N-Lift-Kit-1-1 Categories: , Tags: , , , ,

Description

Enhance your 2001-2006 5 Cylinder Sprinter van’s stability with the Scout Suspension Package for your T1N Sprinter 2500 or 3500.

The Scout 2001-2006- Sprinter Van 2.0” suspension lift system will take you farther on your next overland adventure than you have ever gone before. The Scout bolt-on suspension lift system provides clearance for up to a 33” tire* allowing for higher ground clearance off-road helping to avoid obstacles on the trail when headed to your next camp. The Scout system retains the stock vehicle suspension and rake keeping the OEM T1N Sprinter Van geometry, payload rating and ride quality. All of the suspension lift system components are constructed of high quality materials here in the USA and are powder coated for durability and corrosion resistance.

* Minor front bumper/fender and rear fender modification required to clear 33″ tire.

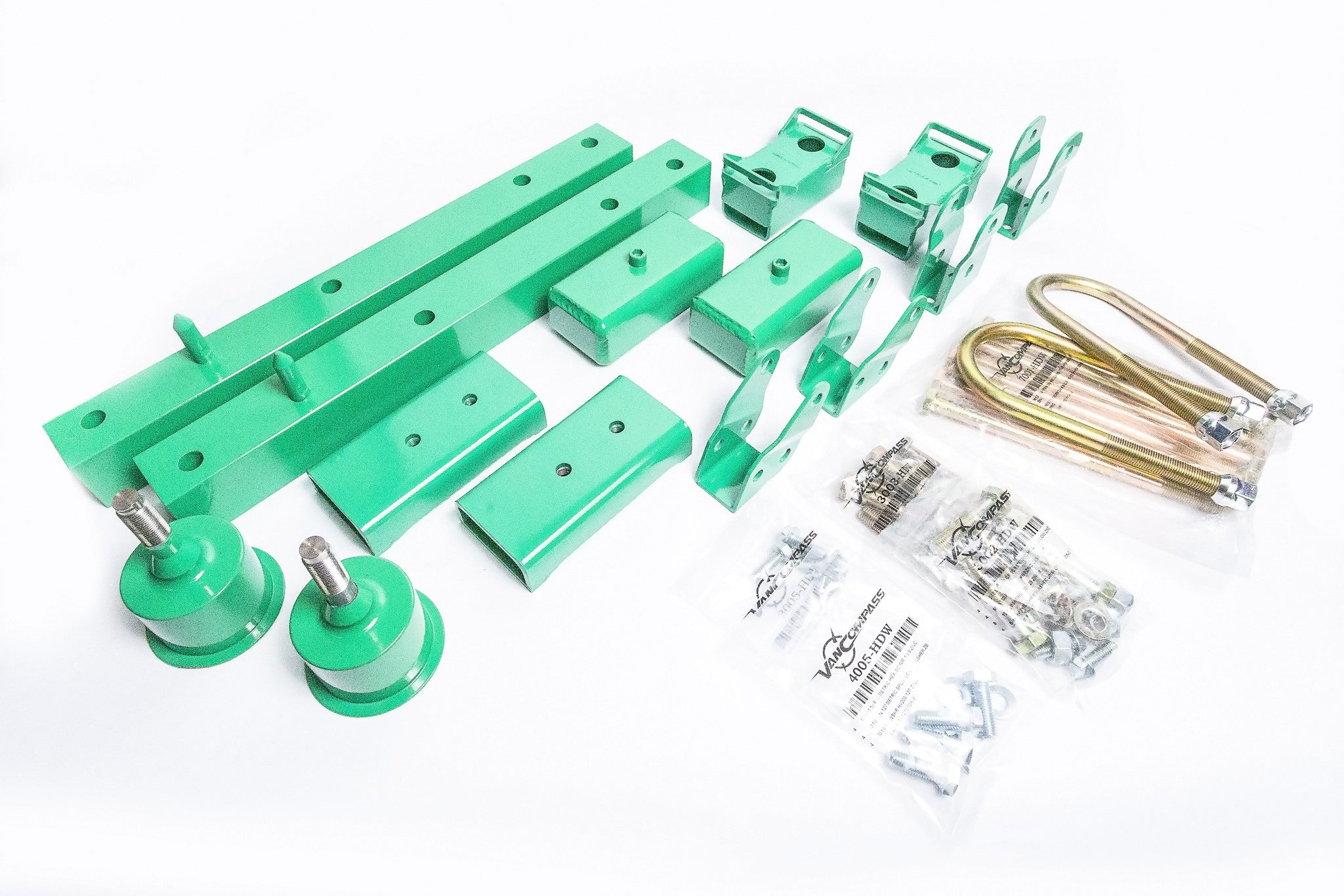

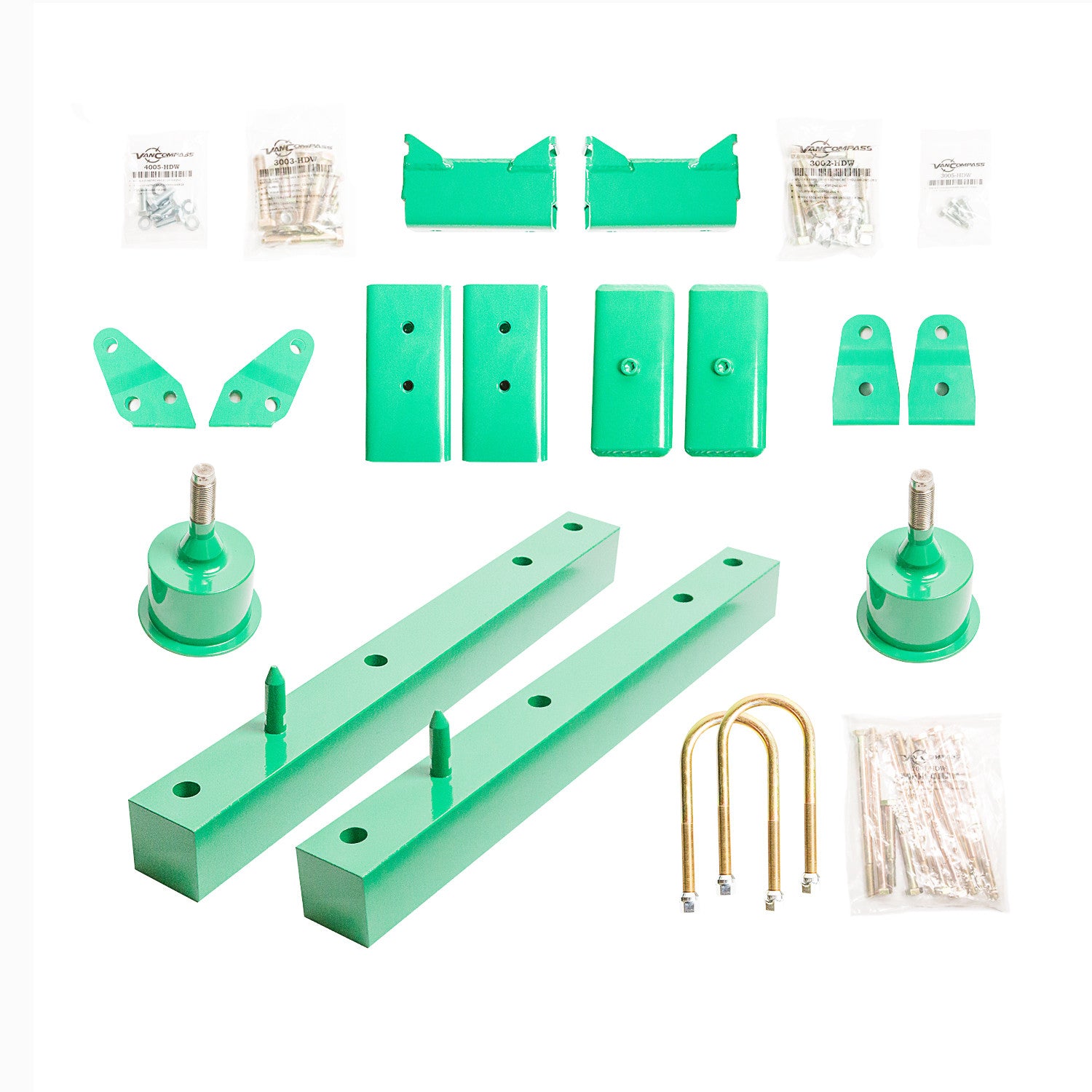

INCLUDED IN THIS PACKAGE:

  • 2001-2006 2500 or 3500 Sprinter Van Scout 2″ Lift Kit, Complete Front and Rear

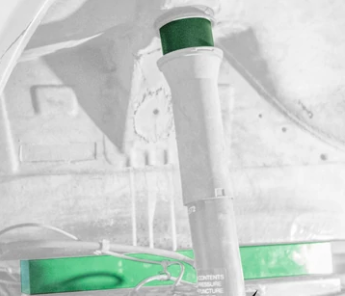

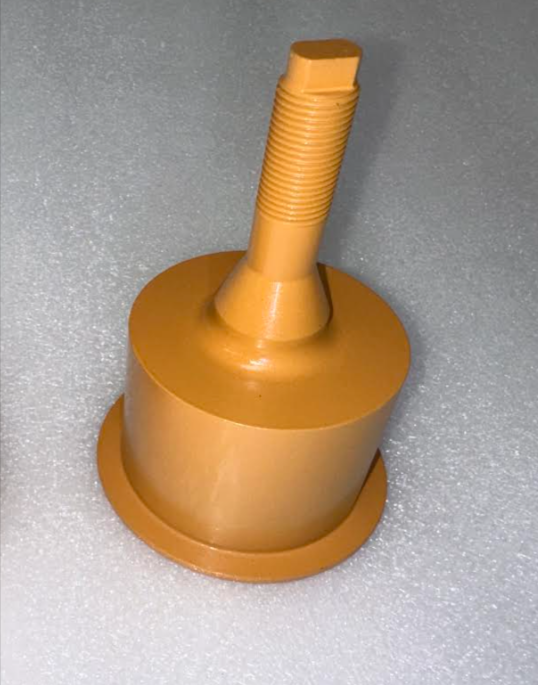

  • 2001-2006 2500 or 3500 Sprinter Van Front 2.0” strut spacer – 4140 heat treated chromoly
  • 2001-2006 2500 or 3500 Sprinter Van Front 2.0” subframe drop spacer – 6061 Aluminum & 4140 heat treated chromoly (Alignment Stud)
  • 2001-2006 2500 or 3500 Sprinter Van Motor mount 2.0” lift spacer – 3/16” hot rolled steel

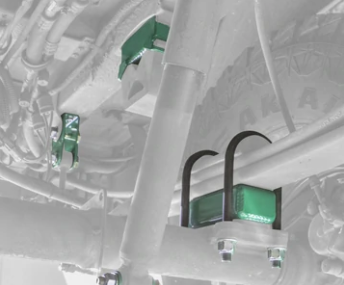

  • 2001-2006 2500 or 3500 Sprinter Van Rear 2.0” lift block – 1/4” hot rolled steel
  • 2001-2006 2500 or 3500 Sprinter Van Rear sway bar drop bracket – 1/8” hot rolled steel
  • 2001-2006 2500 or 3500 Sprinter Van Rear lower shock mounts – 1/8″ hot rolled steel
  • 2001-2006 2500 or 3500 Sprinter Van Rear bump stop drop bracket – 1/8″ hot rolled steel
  • 2001-2006 2500 or 3500 Sprinter Van All necessary hardware

For 2500 or 3500 vans over 8500lbs that have a rear mono leaf, we also recommend pairing with the rear Sumo Springs, found here:

For 2500 or 3500 vans under 8500lbs that have a rear mono leaf, we also recommend pairing with the rear Sumo Springs, found here:



Additional information

Weight 51 lbs
Dimensions 8 × 4 × 3 in
