Roadmaster Direct-Connect Base Plate Kit – Front Mount for T1N 2001-2006 Sprinter Van


 Tax Included Pricing

SKU: TCO279-3 Category: Tags: , , ,

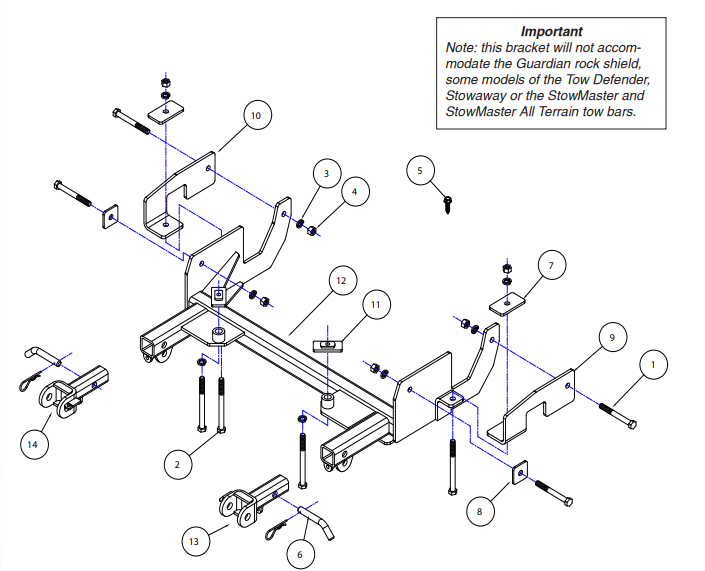

Direct-Connect Base Plate Kit – 2001-2006 Sprinter Vans

 Roadmaster Direct-Connect Base Plate Kit – Removable Arms

Designed specifically for heavy-duty 2001-2006 Dodge Sprinter Van applications, direct-connect brackets install onto your Dodge Sprinter’s frame to provide attachment points for a motor-home-mounted tow bar. Front arms are easily removable when not in use.


  • Hidden bracket design – drawbars are easily removable via 2 pins
  • Computer-cut, all-steel construction provides exceptional strength
  • Black powder coat finish is durable and corrosion resistant
  • Simple installation – no welding
    • Custom base plates ensure a perfect fit for your T1N 2001-2006 Sprinter Van
  • No crossbar needed – faster hookup and sleeker appearance
    • Crossbar not required because these direct-connect base plates are designed for strong, heavy-duty applications
  • Compatible with all Roadmaster tow bars that slide into trailer hitch receivers
  • Covered by Roadmaster Warranty
  • Instructions (click here)  and mounting hardware included
  • Made in the USA

Note: Direct-connect base plates will work only with the Roadmaster tow bars that slide into a trailer hitch, such as the Sterling, Blackhawk, Blackhawk 2, Falcon and Falcon 2. These base plates will not work with tow bars that require a hitch ball.

Direct-connect brackets do not require a crossbar because of the heavy-duty nature of your T1N 2001-2006 Sprinter Van frame. Thus, installation is simplified, the hookup process is faster, and the total appearance is enhanced.

Note: The EZ Hook safety cables included with Roadmaster’s Sterling tow bars will not work with direct-connect base plates. These cables connect to an anchor plate on the Quick Disconnect crossbar, which will not be present when you are using these base plates.

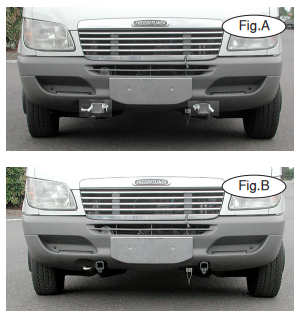

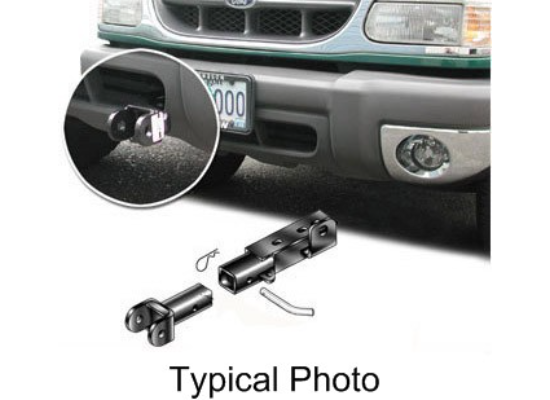

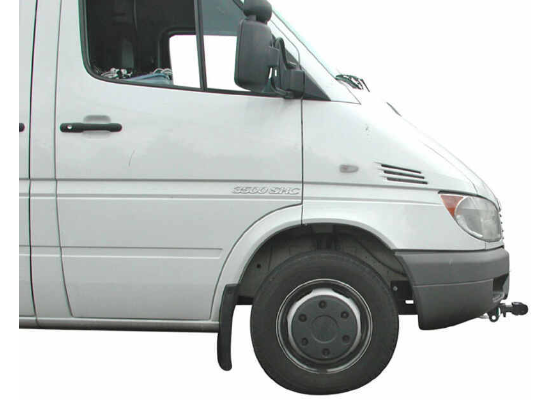

The drawbars, or front arms, on the direct-connect base plate kit are simple to mount and remove, easily securing with pins. Once the drawbars have been removed, the remaining brackets are virtually invisible. On most T1N 2001-2006 Sprinter Van, the brackets are mounted within the grille, where they remain not only unseen, but protected from scrapes and scuffs as well.

279-3 Road Master MX Base Plate Kit

Additional information

Weight 70 lbs
Dimensions 36 × 22 × 15 in
