T1N 2001-2006 Sprinter Van Winnebago RV Motorhome Airbag Replacements Kit for OE



SKU: TCO-Winnebego-PairBagkit Category: Tags: , , , , ,

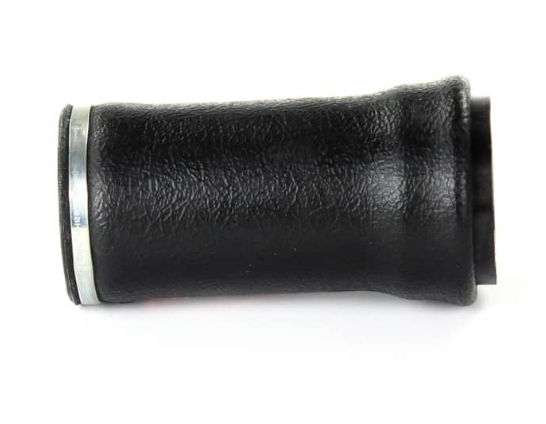

Kit includes Pair (2) Firestone/Automann Airbag Replacements for OE for 2002-2006 Sprinter Van Winnebago RV Motorhomes

There are a few different types, but we will contact you after your purchase and confirm the correct kit for you.

Order with confidence we will get you the right parts/kit for you!

airbags provided are made in USA

Also includes:

  • New airline hose ~30ft
  • New Schrader Elbow (2)

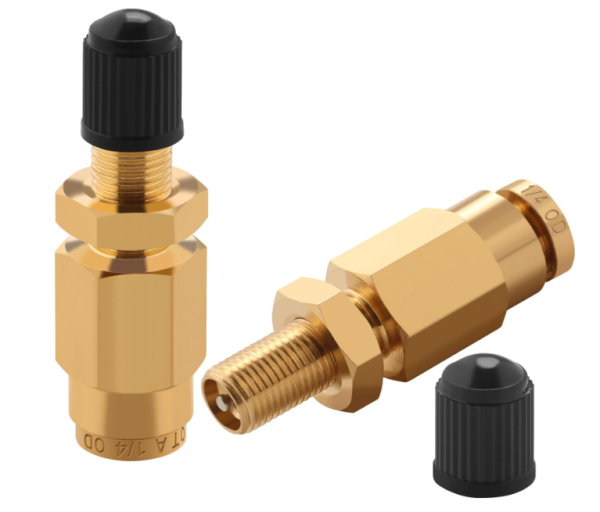

  • Air fill valves (2)
  • Straight connectors (2)
  • Mounting Bolts (4)
  • Washers and Lock Washers (4ea)
  • 1 shrader valve mouting bracket holder
  • Not all items sent with kit might not be needed, but nice to have spares if you don’t utilize.
Airbag kit for the Itasca Navion. Does not include brackets for mounting.

  • Firestone/or like. Industrial Products specializes in air spring manufacturing and technology with a history of more than 80 years of research and development on technologically advanced air springs for the global marketplace.
  • Operates at up to 100 psi (Original Winnebago View Capacity was only 70 psi)
  • Covered by the Firestone Warranty (click here for info)
  • Firestone engineers air springs and related products for T1N 2001-2006 Sprinter Van Winnebago RV Motorhome applications.
  • Firestone Industrial Products helps the industry and its Sprinter Van Winnebago drivers keep trucking in comfort with first-rate anti-vibration technology.
  • Install Firestone Ride-Rite Air Springs on your T1N 2001-2006 Sprinter Van Winnebago RV Motorhome and drive with comfort, confidence and control.
  • Our Ride-Rite products are made from the same material used by the biggest rigs on the road. They’re downright durable, and designed specifically for your Dodge Sprinter Van, so you can haul, tow and live the way you want.

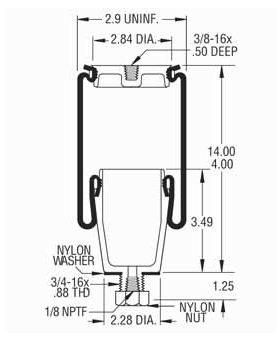

  • Standard, double-convoluted air helper spring
    • Offers maximum load support
    • Provides cushioning between opposing components
    • Enhances performance and ride comfort on vehicles
  • 4-Layer reinforcement construction
    • Enhances air spring load support
  • Braided wire girdle hoop creates convoluted shape
    • Increases burst pressure of spring
  • Environmentally friendly, coated metal end plates
    • Provide superior corrosion resistance
  • Machined, welded, 1/4″ NPT air intake hole
  • Time-proven, rolled crimp seal
    • Keeps rubber air bag secured to end plates



  • Quantity: 2 air spring (airbags)
  • Inflation port: 1/4″ NPT
  • Compressed height: 2.80″
  • Extended height: 8.30″
  • Ride height: 5.50″ to 6.50″
  • Maximum diameter: 6.60″
  • PSI: Up to 100


Additional information

Weight 10 lbs
Dimensions 12 × 12 × 6 in
Airbag Type

Type One – 2500 super single type, Type Two – Others
